The louver screening system for HVAC enclosures, dumpster gates, privacy fencing, and equipment screening. Fabricated in steel or aluminum. Fully welded. Powder coated. Engineered for airflow and visual screening.
The only proprietary louver system available in both steel and aluminum.
Blades welded into frame. Not clipped or pressed into a track.
Fixed panels, swing gates, and slide gates. Handles, drop rods, and panic bars integrated.
Curved configurations for round equipment, facades, and non-linear applications.
AmeriLouver is a specifiable product with full CSI documentation, ASTM-tested materials, and PE-stamped engineering for every project.
AmeriLouver is Metal City Fab's proprietary louver screening panel system, designed for the full range of commercial and industrial screening applications. Unlike competing louver products that are available only in aluminum, AmeriLouver is fabricated in both steel and aluminum, giving the design team the ability to match the material to the structural requirements, budget, and environment of the project.
Every AmeriLouver panel is electronically welded in our shop as a complete, rigid assembly. The 1/8" wall aluminum louver blades seat into punched 2" x 1" x 1/8" channels at 3-1/2" O.C. spacing with 1/2" overlap between blades and 3" clear between. At 6 feet tall, each panel carries 9 louvers per bay and 18 overall, with a 2" sweep at the base for drainage clearance. The 2" x 2" x 1/8" frame is solid welded and mitered. The result is 100% direct visual screening from every angle. Panels will not rattle, loosen, or distort over time, even in high-wind rooftop installations and daily-use dumpster gate applications.
The louver geometry delivers 100% direct visual screening while maintaining airflow through the panel. The system is rated for 30 lbf/sq. ft. uniform wind pressure (inward or outward) and thermal movement across a 120 degree F ambient range. Posts are 3" square x 3/16" extruded tubular aluminum with base plates surface-mounted using 3/4" anchors. All fittings and fasteners are stainless steel. The system is also available in curved panel configurations for round HVAC units, architectural facades, and non-linear applications.
Every AmeriLouver project includes PE-stamped structural engineering, detailed shop drawings, and wind load calculations. Our estimating team responds within 24 hours.
Square posts for heights up to 9 feet. I-beam posts with double-stacked panels for 10 feet and above. Custom heights available.
| Height | Post Type | Panel Length | Footing |
|---|---|---|---|
| 3' - 4' | 2-1/2" sq x 6" wall | 57-1/2" | Per engineer |
| 5' | 2-1/2" sq x 6" wall | 57-1/2" | Per engineer |
| 6' | 3" sq x 6" wall | 57" | Per engineer |
| 7' | 3" sq x 6" wall | 57" | Per engineer |
| 8' | 3" sq x 2" wall | 57" | Per engineer |
| 10' | I-Beam 3" x 2-3/8" x 8" wall | 59-1/8" | 12" dia x 48" deep |
| 12' | I-Beam 3" x 2-3/8" x 8" wall | 59-1/8" | 12" dia x 48" deep |
| 14' | I-Beam 5" x 2-3/4" x 8" wall | 59-1/8" | 18" dia x 72" deep |
| 16' | I-Beam 5" x 2-3/4" x 8" wall | 59-1/8" | 18" dia x 72" deep |
5' O.C. max post spacing on all heights. Heights 10' and above use double-stacked panels on I-beam posts. Plated posts and core-set with precision grout also available. Non-standard sizes may incur additional cost and lead time.

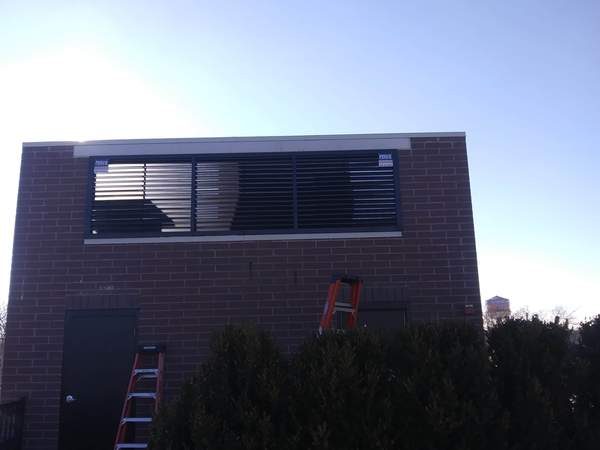

Ground-level and rooftop mechanical equipment screening. 100% visual screening with maximum airflow.
Double-swing and single-swing gates with cane bolts, drop rods, and heavy-duty hinges for daily use.
Louvered panels for patios, courtyards, pool areas, and property lines where screening with airflow is needed.
Generators, transformers, compressors, and utility equipment. Conceals infrastructure with service access.
Engineered for wind uplift. Screens mechanicals from ground-level sightlines per zoning requirements.
Restaurant patios, hotel courtyards, and outdoor dining areas. Privacy and airflow in defined spaces.
Facade screening for parking garages. Conceals vehicles while allowing natural ventilation.
Building facade screening and sun shade elements. Curved and flat configurations for architectural integration.
AmeriLouver is available as fixed screening panels, operable swing gates, and slide gates. All configurations use the same louver blade profile and frame system for a consistent appearance across the project.
Standard louvered panels for perimeter screening, HVAC enclosures, and equipment concealment. Fabricated to exact dimensions. No field trimming required.
Single and double-swing gates for dumpster access, equipment service, and pedestrian entries. Hardware includes handles, cane bolts, drop rods, panic bars, and self-closing hinges.
Cantilever and V-track slide gates for wide openings where swing clearance is limited. Commonly specified for dumpster and loading dock access.
Curved louver configurations for round mechanical units, architectural facades, and non-linear screening. Radius fabrication wraps equipment or follows building geometry.
AmeriLouver panels and gates have been installed on hundreds of commercial and multifamily projects for dumpster enclosures, HVAC screening, privacy fencing, and equipment concealment.
Seven standard colors: Old World Black, Classic White, Statuary Bronze, Ivy Green, Heatherwood, Expresso, and Industrial Silver. Custom colors also available. Color-matched to ACR4500 railings and other MCF products from the same powder coat line.
Custom colors also available. Standard colors: Satin Black, White, and Dark Bronze ship fastest.
Every AmeriLouver installation is backed by PE-stamped structural calculations for wind load, mounting, and screening height. All aluminum per ASTM B221 (extrusions) and ASTM B209 (sheet), alloy 6063-T6. Welding per AWS D1.2. Powder coat per AAMA 2604 with 2H hardness, 160 in-lb impact resistance, and 1,000-hour salt spray rating. Specifiable under CSI Section 32 31 13.
Send us your architectural drawings and screening requirements. Our estimating team will have a detailed AmeriLouver proposal back to you within 24 hours.
